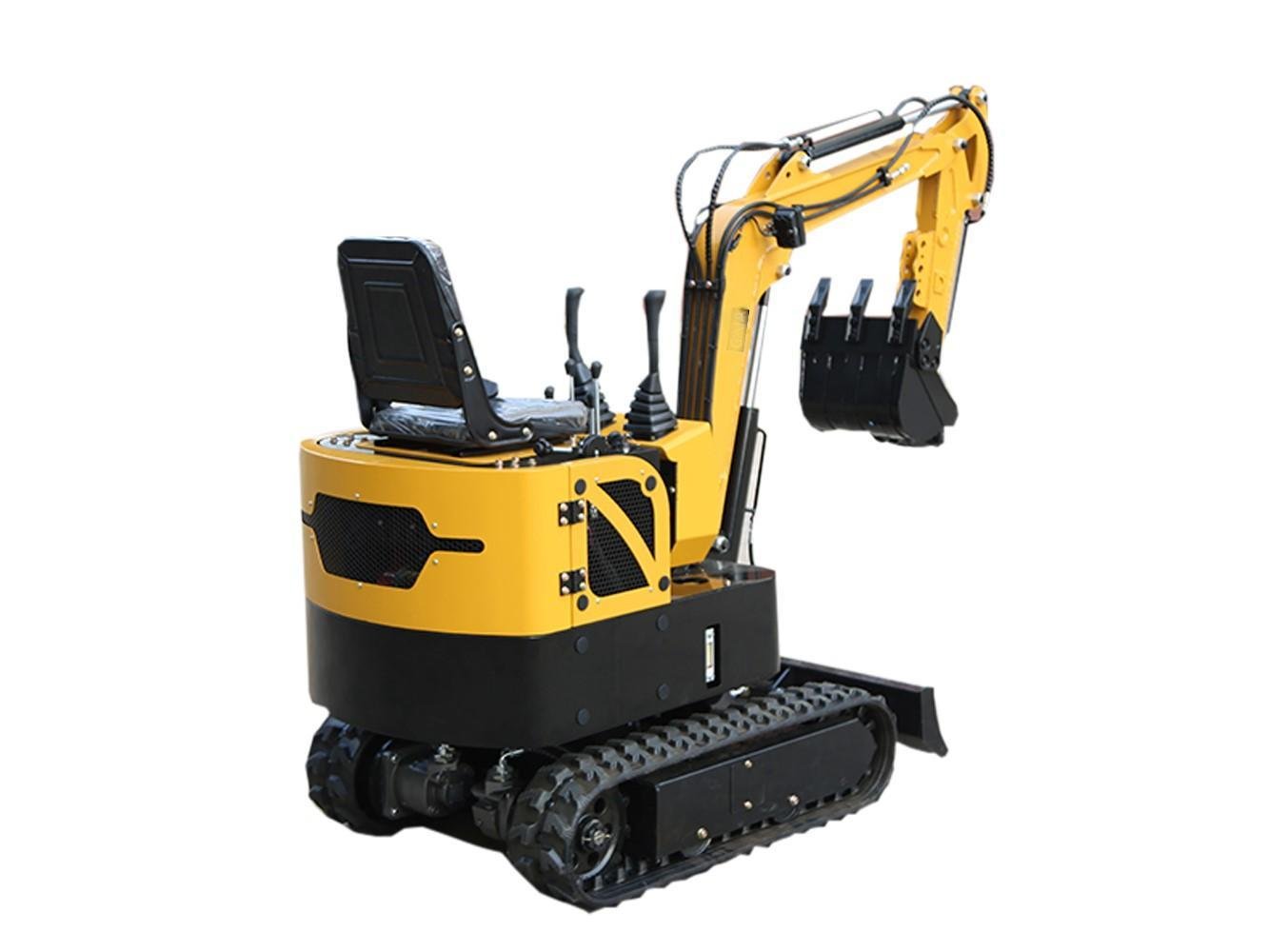

The Compact Excavator is a versatile and efficient machine designed for various small to medium-sized projects. It is ideal for use in tight spaces, making it perfect for urban construction sites, landscaping, and residential areas.Weight:
Operating Weight: 808 – 850 kg This lightweight design allows for easy transportation and maneuverability in confined areas.
Maximum Digging Height: 2500 mm The excavator can reach up to 2.5 meters, making it suitable for tall tasks like loading trucks or reaching over obstacles.
Compact excavator Maximum Dump Clearance: 1700 mm This ensures smooth operation when unloading materials, even in tight spaces.
Maximum Digging Depth: 1580 mm The excavator can dig up to 1.58 meters deep, ideal for foundation work and trenching.
Compact excavator Maximum Vertical Digging Depth: 1200 mm This feature is useful for vertical excavation tasks, such as digging alongside walls.
Maximum Digging Radius: 2900 mm The extended reach of 2.9 meters allows the excavator to cover a wide area without needing to reposition frequently.
Minimum Turning Radius: 1450 mm The compact design and small turning radius make it easy to navigate through narrow spaces.
The Compact Excavator is a valuable tool for any project that requires precision and flexibility. Its compact size, powerful performance, and versatile capabilities make it an excellent choice for a wide range of applications. Choose the Compact Excavator to enhance your productivity and efficiency on any job site.
| 0.8 ton Compact Excavator Specification | |
| Operating Weight | 808 – 850 kg |
| Maximum Digging Height (A) | 2500 mm |
| Maximum Dump Clearance (B) | 1700 mm |
| Max. Digging Depth (C) | 1580 mm |
| Maximum Vertical Digging Depth (D) | 1200 mm |
| Maximum Digging Radius (E) | 2900 mm |
| Minimum Turning Radius (F) | 1450 mm |
| Horsepower | 13.5 HP |
| Engine Model | Briggs & Stratton |
| Horsepower | 13.5 HP |
| Engine Fuel | Gasoline (#90 or over) |
| Emissions | Meets U.S. EPA Tier 4 Final/EU Stage V emission standards. |
| Rated Speed | 3600 r/min |
| Weight Class | Half a ton |
| Travel Speed | 2.7 – 3.5 km/h |
| Maximum Digging Depth | 1580 mm |
| Minimum Ground Clearance ( j ) | 127 mm |
| Minimum Turning Radius | 1450 mm |
| Maximum Digging Radius | 2990 mm |
| Bucket Capacity | 0.025 m³ |
| Fuel Tank Volume | 6.6 L |
| Fuel Consumption | 1.0 L/h |
| Fuel Type | Diesel |
| Hydraulic Tank Volume | 10.7 L |
| Main Pump Flow | N/A |
| Rated Pressure | 13 MPa |
| Max. Pressure | 20 MPa |
| Length | 2200 mm |
| Width (b) | 925 mm |
| Height (c) | 2000 – 2175 mm |
| Minimum Ground Clearancet | 127 mm |
| Maximum Vertical Dig Depth | 1200 mm |
| Maximum Digging Radius | 2900 mm |
| Wooden Length (a) | 2800 mm |
| Track (g) | 906 mm |
| Gauge Width (h) | 742 mm |
| Platform Ground Clearance (i) | 370 mm |
| Turntable Width (d) | 805 mm |
| Total Chassis Width (e) | 925 mm |
| Certifications | CE, ISO9001:2015 |
| Air Conditioning | Optional |
| Cab Enclosure | Optional |
| Quick Tach System | Optional |
| Rubber Track | Standard |
| Optional Engine | B&S | HONDAG | Kubota |
| Telescopic Side Swing | Not Applicable |
| Operation Type | Mechanical |
